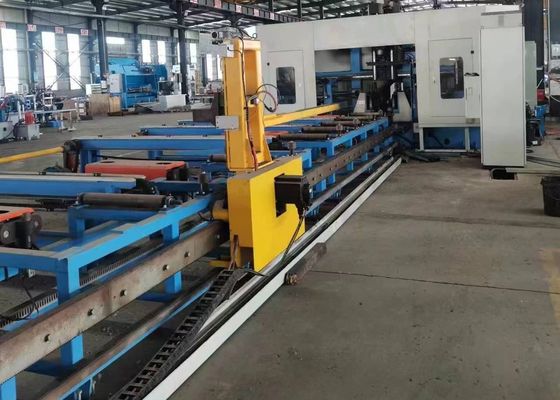

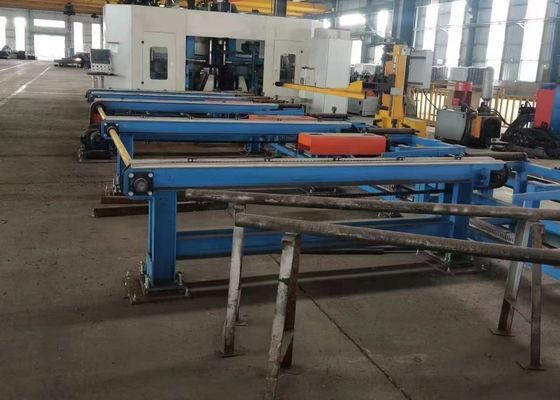

100-500mm H Beam Width Range BHD Series CNC Drilling Machine 0-10m/Min Spindle Feeding Speed
Application:
It is mainly used for drilling, tapping, marking and scoring H-shaped steel, channel steel, angle steel and other steels. It is widely used in steel structure industries such as buildings, garages, towers and grid structures.
Specifications:
|
Model
|
BHD500/3 |
BHD700/3 |
BHD1000/3 |
BHD1250/3 |
|
H Beam width
range (mm)
|
100~500 |
100~700 |
100~1000 |
100~1250 |
|
H Beam height
range (mm)
|
100~500 |
100~500 |
100~500 |
100~600 |
|
Channel steel
width range (mm)
|
100~500 |
100~700 |
100~1000 |
100~1250 |
|
Channel steel
height range (mm)
|
100~250 |
100~250 |
100~250 |
100~300 |
|
Max. workpiece
thickness (mm)
|
40 |
40 |
80 |
80 |
|
Max. workpiece
length (m)
|
12 or 15 (optional) |
|
Drilling spindle
qty.
|
Total 3 spindles, one spindle on the upper unit, left side and right side respectively
|
|
Spindle hole
taper
|
BT40 |
BT40 |
BT40 |
BT40 |
|
Max.drilling
diameter (mm)
|
40 |
40 |
40 |
40 |
|
Spindle motor
power (kW)
|
11 |
11/ 15 |
11/ 15 |
11/ 15 |
|
Spindle speed
(r/min)
|
100~3000 |
100~3000 |
100~3000 |
100~3000 |
|
Spindle feeding
speed (m/min)
|
0~10 |
0~10 |
0~10 |
0~10 |
|
X-axis feeding
speed (m/min)
|
0~40 |
0~20 |
0~20 |
0~20 |
|
Qty of tool
magazine
|
3 |
3 |
3 |
3 |
|
Tool magazine
type and capacity
|
Row type, 3x4 (optional) |
|
Marking unit
(optional)
|
Disc typing, 36 characters, character size Φ10mm
|
| CNC system |
German Siemens, Japan Panasonic, China INVT
|
| Cooling method |
Spray cooling, internal cooling + external cooling |
|
Machine Overall
Size (m)
|
About 32x5x3.5 |
About 33x5.5x3.5 |
About 33x5.5x3.5 |
About 33x6x3.5 |
| Total Power (kW) |
About 55 |
About 55 |
About 60 |
About 60 |
The above parameters can be adjusted and changed according to customer's specific requirements.
1. Necessary and special drilling equipment for building steel structure industry.
2. Drill holes on three surfaces on H beams and channels at the same time, with high precision and high efficiency.
3. 7 CNC axes, automatically complete accurate feeding and positioning.
4. Can recognize AUTOCAD and DSTV work piece drawings and convert them into machining programs.
Product Features
1. The feeding mechanism adopts CNC carriage clamping and feeding with high speed and positioning precision.
2. Three BT40 high-speed spindles are used to drill the three faces of the H-beam. It adopts carbide drill bit, the spindle rotation speed can be up to 3000rpm. The processing efficiency is high and the drilling effect is good. The chips occurred during drilling will be conveyed by the chain-type chip conveyor.
3. The cooling system adopts mist cooling, which has the functions of internal cooling and external cooling. Each drilling spindle box is equipped with its own external cooling nozzle and internal cooling connector, which can be selected according to drilling needs. Internal cooling and external cooling can be used separately or simultaneously.
4. The automatic tool changer (ATC) system can be equipped according to the requirement of customers, no need to replace the tool manually, saving time and improving work efficiency.
During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine is capable of effectively showcasing its processing capabilities when operating on standard H-beam samples (featuring varying flange widths and web thicknesses) as well as channel steel samples of diverse dimensions. The samples presented in these demonstrations distinctly illustrate the machine tool’s capacity to achieve accurate hole positioning, smooth tapped threads, and legible marking patterns—thereby fully embodying its high precision and dependability in real-world application scenarios.
The High-Speed CNC H-Beam Drilling, Marking and Shearing Machine is primarily utilized in steel structure workshops and bridge construction projects. Within steel structure workshops, it conducts precision processing on H-beams employed for frameworks and support structures, thereby establishing a robust foundation for the stable assembly of steel structures. In bridge construction scenarios, it executes high-accuracy drilling operations on H-beams—this not only contributes to enhancing the structural integrity of bridges but also enables them to effectively withstand long-term loads. Endowed with high operational efficiency, the machine delivers reliable support to these critical infrastructure sectors, safeguarding the smooth progression of relevant projects.
