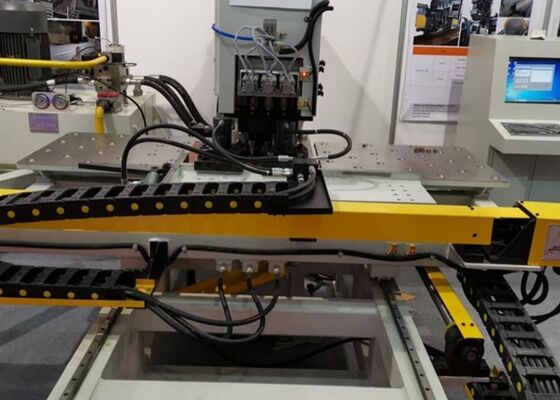

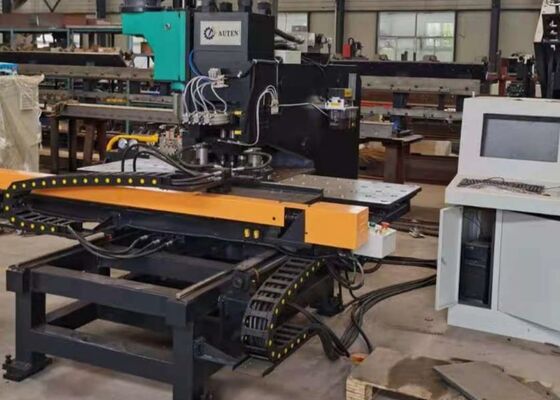

26mm Punching Diameter CNC Plate Punching Marking Drilling Machine 14*10*19mm Character Size

1. The frame of the CNC channel steel punching and marking machine is constructed via C-type plate welding, offering superior structural rigidity and ample operational clearance. Equipped with three die stations (one exclusively designated for marking applications), the equipment facilitates automatic die station indexing to enhance workflow efficiency. Its clamping mechanism boasts versatile compatibility with a diverse range of workpieces, employing a zero-reference baffle as the positioning datum, while the workpiece is supported by a ball-bearing worktable to ensure smooth handling. X and Y axis movements are driven by servo motors and transmitted through high-precision ball screws, with a Programmable Logic Controller (PLC) governing punching position calibration—thus realizing full automation of the entire machining process. Upon the operator's input of the workpiece program, the program can be stored, retrieved, and repeatedly utilized for cyclic production operations.

2. The CNC steel drilling machine integrates cutting-edge Computer Numerical Control (CNC) technology and servo motor-driven feed mechanisms, ensuring superior operational efficiency and consistent workpiece precision.
3. Core functional components feature a modular design, enabling convenient maintenance and optimized repair procedures.
4. The CNC metal plate punching and marking machine supports the integration of punching, marking, and drilling processes on a single metal plate, realizing multi-process consolidation within a single operational cycle.

5. The drilling module integrates core functional capabilities including rapid downward feed, precision machining advancement, and swift retraction—all of which significantly boost operational efficiency in practical application scenarios.
6. Equipped with an intelligent fault self-diagnostic system, the equipment enables timely detection of operational irregularities, facilitating proactive maintenance measures and ensuring uninterrupted production stability.

7. The programming workflow is elaborately engineered with user-centric usability as its cornerstone: operators can directly input hole diameters, hole position coordinates, and workpiece batch volumes into the control system. Furthermore, the system supports the implementation of programs generated by professional lofting software, or enables direct CAD/CAM file conversion to ensure seamless and efficient program execution.
