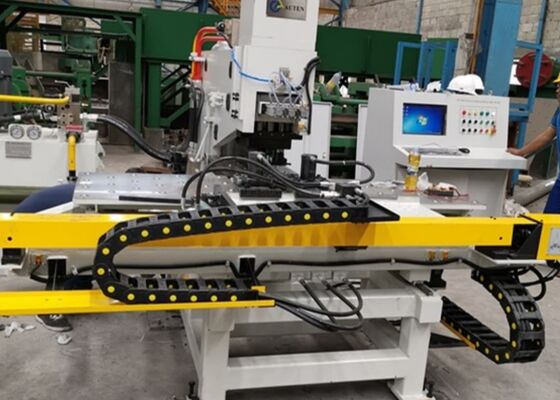

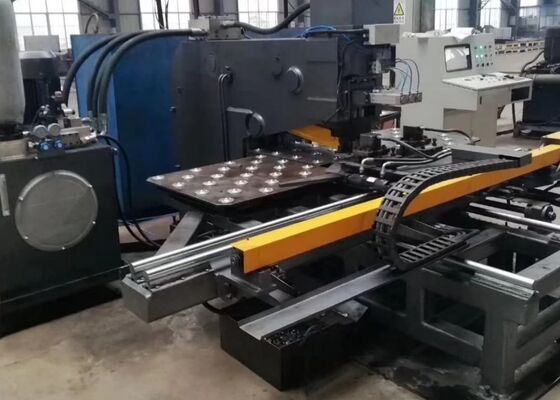

CNC Plate Punching Machine With Overall Dimension 3.2*3*2.6 Meters For Plate Processing

1. The frame of the CNC channel steel punching and marking machine is constructed via C-type plate welding, delivering outstanding structural rigidity and ample operational space. Equipped with three die stations (one dedicated to marking operations), the machine enables automatic die station switching for enhanced workflow efficiency. Its clamping system features versatile compatibility with diverse workpieces, adopting a zero-position baffle as the reference datum, while the workpiece is supported by a ball-roller worktable to ensure smooth handling. The X and Y axis movements are regulated by servo motors and transmitted via precision ball screws, with a Programmable Logic Controller (PLC) managing punching position control—thus realizing full automation of the entire machining cycle. Once the workpiece program is input by the operator, it can be retrieved and reused consistently for repeated production runs.

2. The CNC steel drilling machine integrates Computer Numerical Control (CNC) technology and servo motor-driven feeding, ensuring superior operational efficiency and consistent workpiece precision.
3. Core functional components are designed with a modular structure, enabling convenient maintenance and streamlined repair procedures.
4. The CNC metal plate punching and marking machine supports the integration of punching, marking, and drilling processes on a single metal plate, realizing multi-process integration in one operation.

5. The drilling machine unit integrates core functions such as rapid lowering, slow working feed, and quick retraction—all of which significantly boost operational efficiency in practical applications.
6. Equipped with an intelligent fault self-diagnosis system, the machine enables timely detection of operational abnormalities, supporting proactive maintenance and stable production.

7. The programming workflow is engineered with user-centric functionality: operators can input hole diameters, hole coordinates, and workpiece batch quantities into the control system. Furthermore, it supports the deployment of programs generated by lofting software, or enables direct CAD/CAM file conversion for seamless program execution.
